Home / Products / SMC LEPY Series Electric Actuator Miniature Rod Type

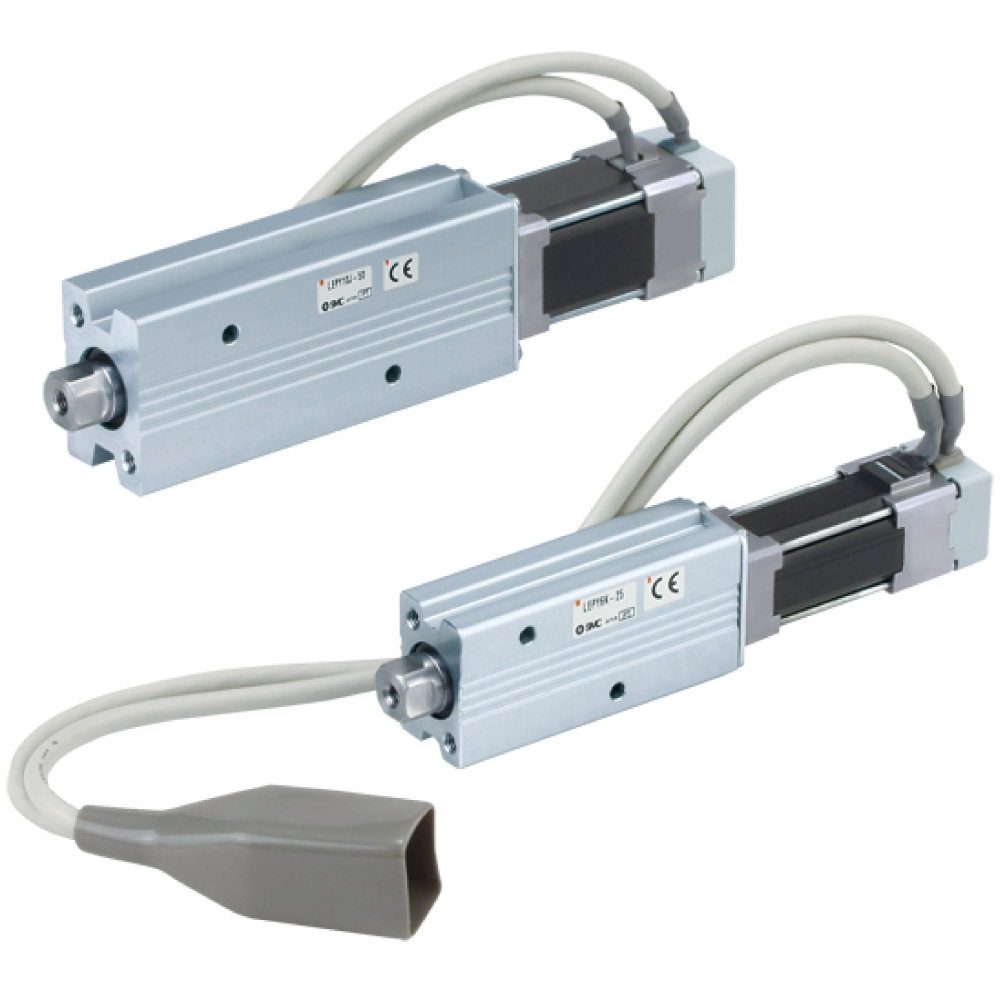

SMC LEPY Series Electric Actuator Miniature Rod Type

SMC LEPY Series Electric Actuator Miniature Rod Type

Description

Category: Electric actuators / Motion control
Type: Miniature rod type electric actuator
Series: LEPY,LEPY6, LEPY10
Compact and lightweight design
Dimensions: W 20.5 mm × H 30 mm × L 125.6 mm
Weight: 240 g
Max pushing force: Up to 50 N
Positioning repeatability: ±0.05 mm
Position, speed, and force can be set (up to 64 points)
Max speed: Up to 350 mm/s (horizontal)
Stroke options: 25, 50, 75 mm
Max work load: Up to 6 kg (model dependent)
Screw lead options: 4, 5, 8, 10 mm
Motor: Step motor (Servo / 24 VDC)
