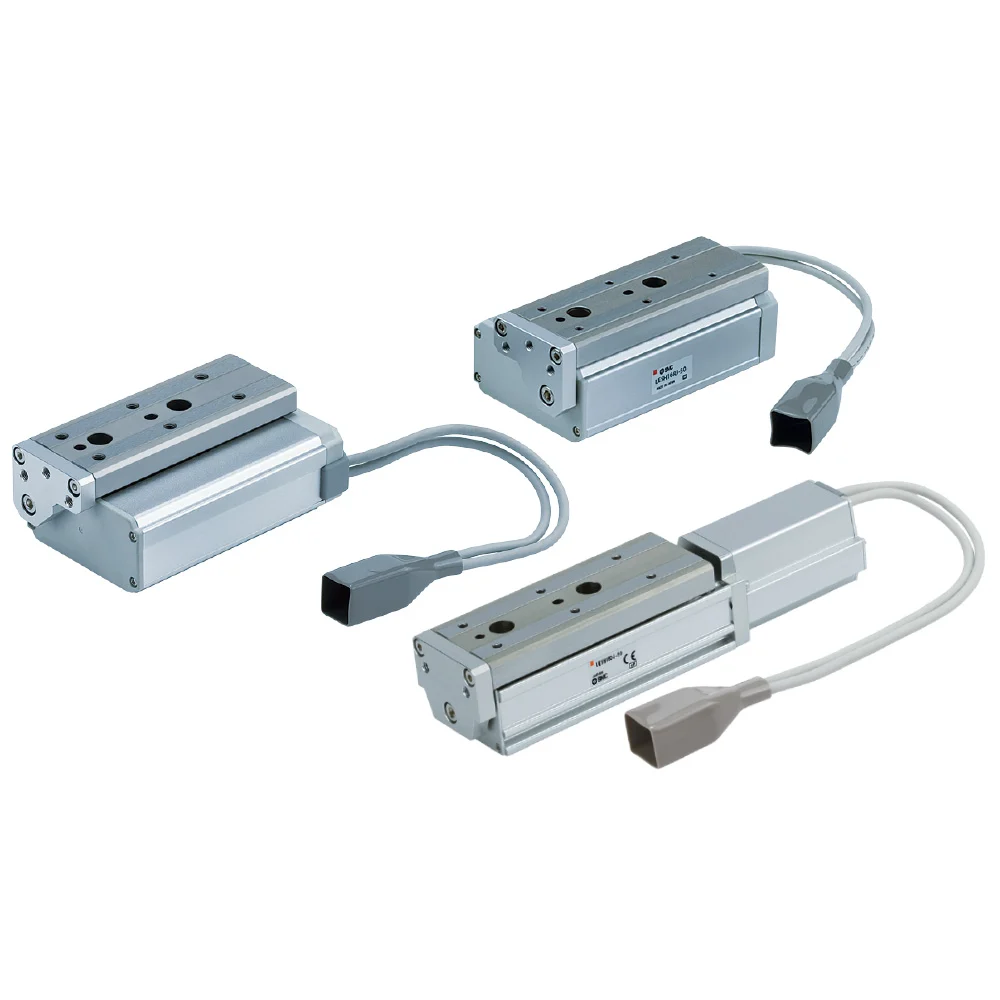

SMC LESH Series Electric Slide Table (High Rigidity Type)

SMC LESH Series Electric Slide Table (High Rigidity Type)

Description

Category: Electric actuators / Motion control
Type: High rigidity electric slide table
Series: LESH, LESH8, LESH16, LESH25
Motor options: Step motor (24 VDC) and servo motor (24 VDC)
Stroke range: 50 to 150 mm (model dependent)
Work load: Up to 12 kg (horizontal), up to 4 kg (vertical)
Speed: Up to 400 mm/s
Screw lead options: 4 to 16 mm
Design: Integrated guide rail with recirculating linear guide for high rigidity
Operation: Easy setup with pre-configured controller (position & speed)
Accuracy: Positioning repeatability ±0.05 mm
Performance: Reduced cycle time with acceleration up to 5000 mm/s²
