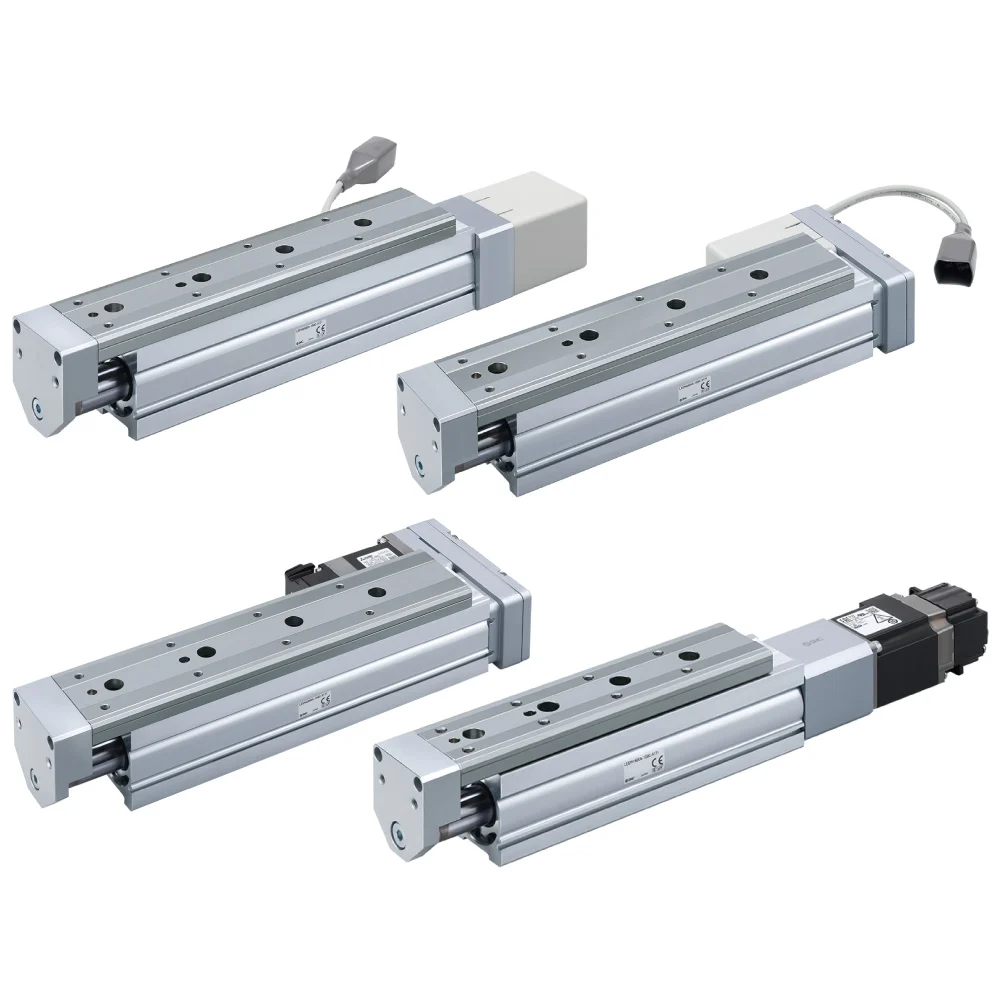

SMC LESYH Series Electric Slide Table (High Precision Type)

SMC LESYH Series Electric Slide Table (High Precision Type)

Description

Category: Electric actuators / Motion control
Type: High precision electric slide table
Series: LESYH, LESYH8, LESYH16, LESYH25
Drive system: Ball screw drive for enhanced accuracy
Motor options: Step motor (24 VDC) and AC servo motorc
Stroke range: 50 to 150 mm (model dependent)
Work load: Up to 12 kg (horizontal), up to 20 kg (vertical)
Speed: Up to 400 mm/s
Screw lead options: 2.5 to 20 mm
Accuracy: Positioning repeatability ±0.01 mm
Lost motion: ≤ 0.1 mm
Performance: Up to 5× increased vertical load capacity
Design: Motorless option available (compatible with existing motor/driver)
