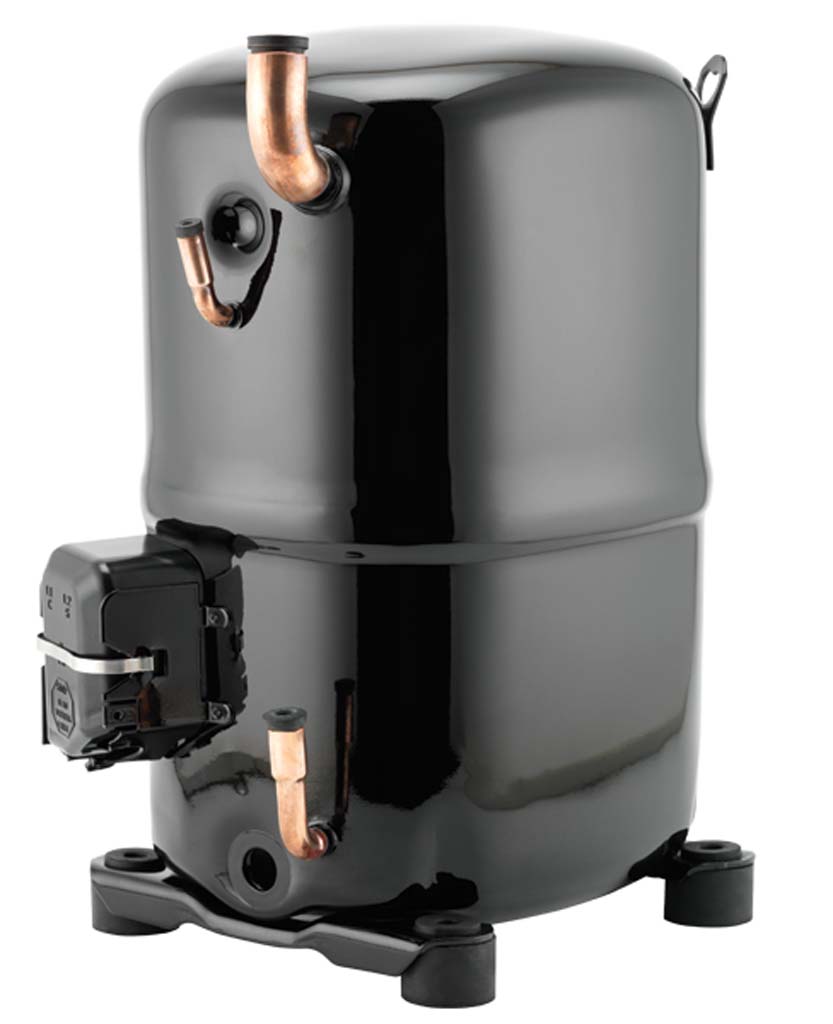

Tecumseh AG2525Z-KZ1A Compressor

Tecumseh AG2525Z-KZ1A (TAG2525Z) is a 5 HP reciprocating compressor designed for low back pressure (LBP) refrigeration applications. It operates with R-452A and R-404A refrigerants and features a 3-phase motor, high start torque (HST), and fan cooling. With a 145 cc displacement and an evaporating temperature range of -40°C to -10°C, it is suitable for demanding commercial and industrial refrigeration systems.

Technical Specifications

• Brand: Tecumseh
• Model: AG2525Z-KZ1A
• Alternate Model: TAG2525Z
• Product Type: Reciprocating Compressor
• Application: LBP (Low Back Pressure)
• Compressor Series: AG Series
• Refrigerant: R-452A / R-404A
• Horse Power: 5 HP
• Motor Type: 3 Phase
• Voltage/Frequency: 220V, 3~, 50/60 Hz
• Evaporating Temperature Range: -40°C to -10°C (-40°F to 14°F)
• Motor Torque: High Start Torque (HST)
• Compressor Cooling: Fan
• Displacement: 145 cc
• Weight: 48 kg
• Oil Type: Polyolester (POE)
• Oil Viscosity: 32 cSt
• Oil Charge: 1760 cc
• Locked Rotor Amps (LRA): 118 A
• Rated Load Amps (RLA), 50 Hz: 12.5 A
• Rated Load Amps (RLA), 60 Hz: 13.7 A
• Maximum Continuous Current (MCC): 25.9 A
• Motor Resistance – Main: 0.64 Ω
• Motor Resistance – Start: 0.64 Ω
